ASME BPE Stainless Steel Process Systems
Our new generation sanitary diaphragm valves are precision-engineered specifically for aseptic, high-purity, and hygienic fluid control. They provide reliable, sterile performance across the pharmaceutical, biotech, CDMO biologics, biosimilars, and food & beverage processing industries.
Global Compliance & Quality Standards
Manufactured to meet the most stringent international standards for ultra-clean processing environments:
• ASME BPE Certified
• GMP (Good Manufacturing Practice) compliant
• EHEDG Approved
• 3A Sanitary Certification (3A-54-02/1580)
| Technical Specifications & Engineering Data | |
|---|---|
| Size Range | 1/2" to 2.5" (DN15-DN65) |
| Body Material | High-precision 316L Stainless Steel (CF3M) (Meets ASME SA249/ASTM A269 material standards) |
| Surface Roughness | Standard high-purity finishes available (SF1 / SF4 Electropolished) to minimize product retention |
| Max Working Pressure | 10 bar (145 PSI) |
| Temperature / Operating | -20°C to +150°C |
| Diaphragm Materials | EPDM+PTFE (Double-Deck design for heavy-duty cycling), EPDM, Silicon, FPM (Viton) |
| Connection Types | Sanitary Tri-Clamp, Orbital Welding, and Threaded (3A, BPE, DIN, SMS, IDF, ISO) |
| Key Product Features & Operations | |
|---|---|
| Zero- Contamination Aseptic | The valve architecture ensures complete body and seat sealing. With absolutely no path to the outside atmosphere, it guarantees total isolation for aseptic processes. |

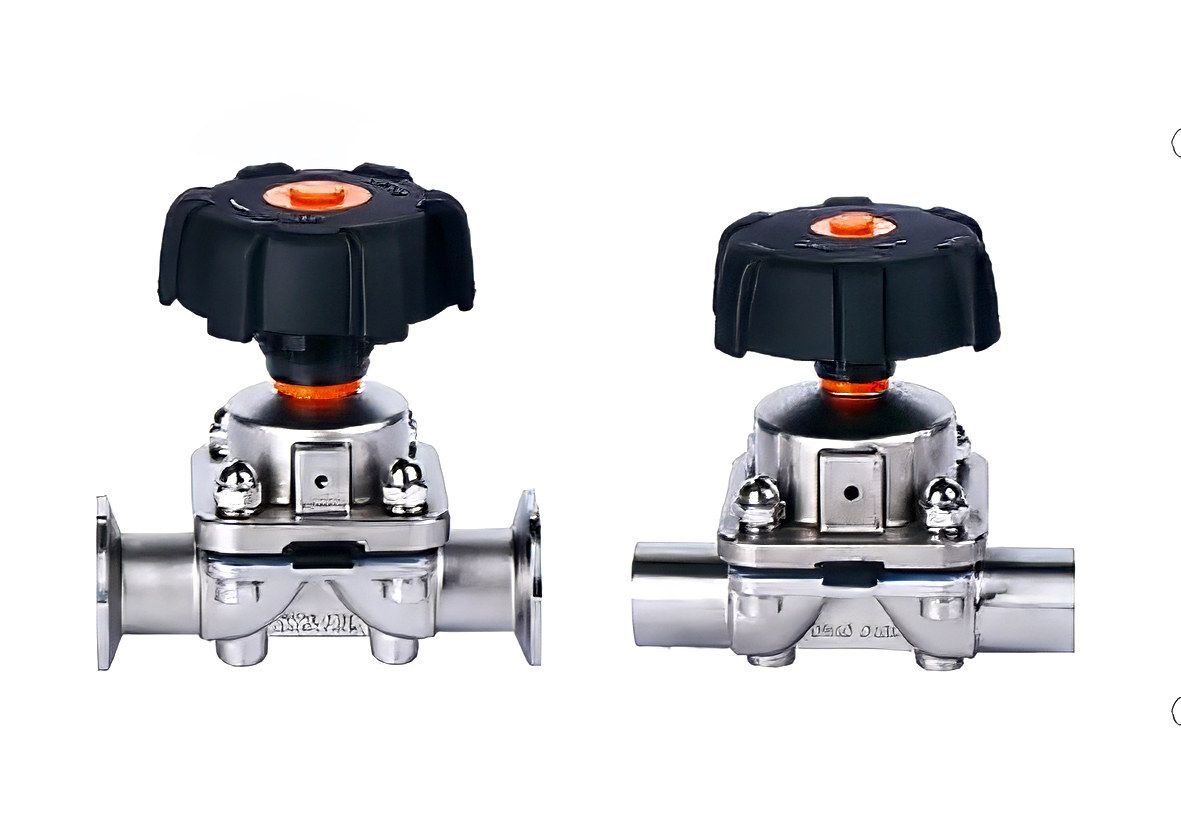

| Versatile Actuation Options | Available in both Manual handwheel and Pneumatic actuator configurations for precise flow control, automation, and system switching. |
| Anti- Extrusion Design | Engineered with a specialized physical relationship between the valve body and the pressure plate. This design prevents elastomer extrusion, significantly extending the service life of the diaphragm seal. |
| Flexible Body Configs | • Standard 2-Way and 3-Way bodies • U-Type 3-Way point-of-use valves • Zero-deadleg Tank Bottom valves • Custom Multi-way diaphragm valve blocks |
