Food & Beverages Hygienic Piping Systems
Sanitary Fluid Handling & High-Purity Food Process Systems

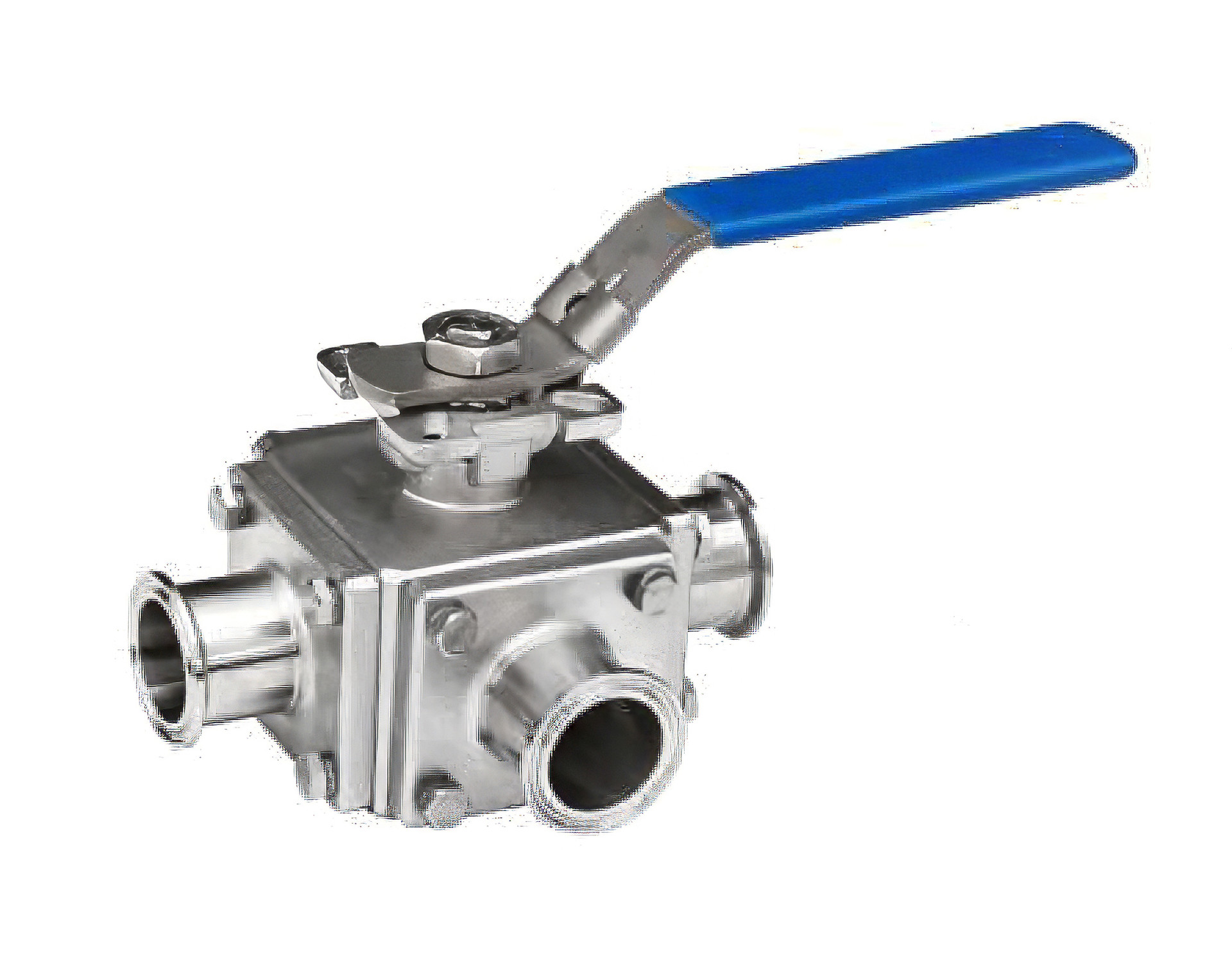

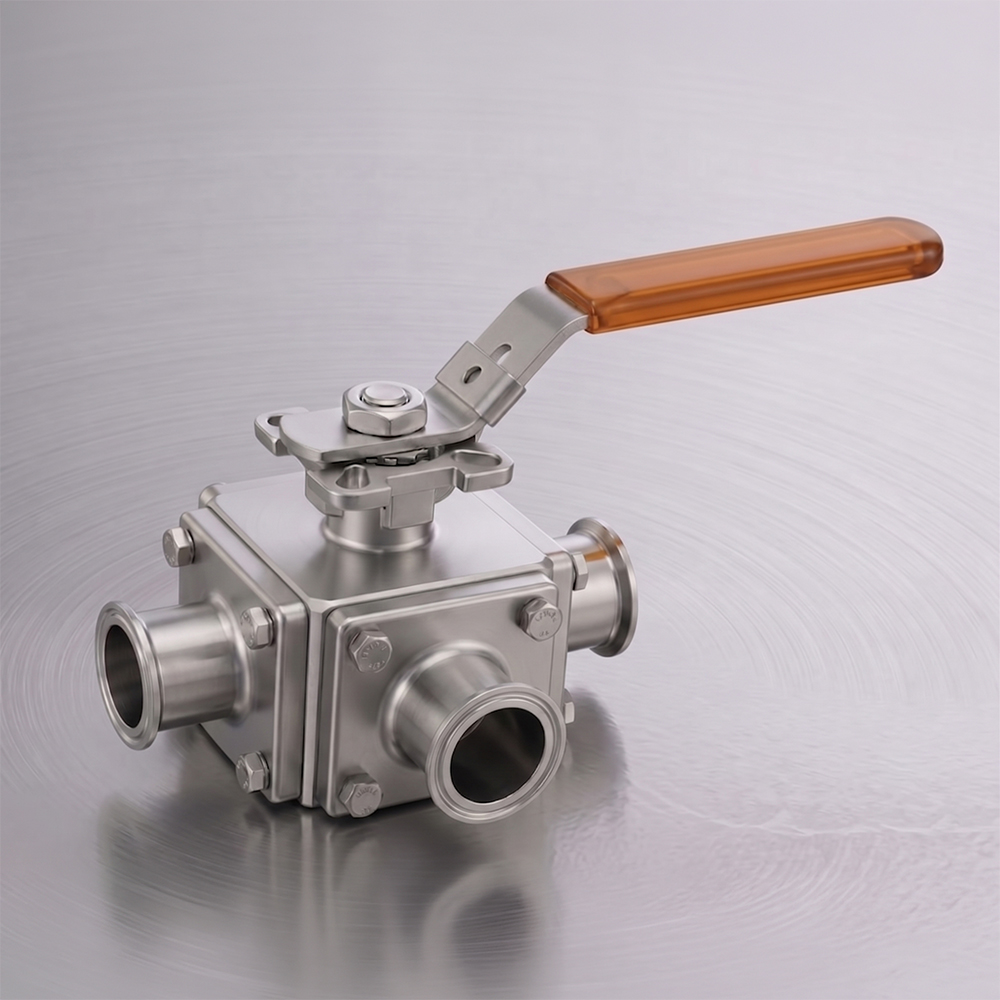

WSG sanitary ball valves are engineered for high-performance fluid control in hygienic processing environments. Our versatile series of ball valves offers robust, reliable sealing and an unrestricted flow path, making it the ideal choice for food processing, beverage, dairy products, pharmacy, wine making, cosmetics, chemical, and semiconductor industries.
Global Compliance & Quality Standards
Manufactured to meet the most stringent international standards for sanitary processing and pressure containment:
• 3-A Sanitary Certification (3-A-68-00)
• PED (Pressure Equipment Directive) Compliant
• 97/23/EC Certified
| Technical Specifications & Engineering Data | |
|---|---|
| Size Range | 1/2" to 4" (DN15 - DN100) |
| Body Material | High-precision 316L Stainless Steel (Meets global material standards for premium material integrity) |
| Surface Roughness | SF1 Standard: Ra ≤ 20μin (0.5μm Max) [Standard for Food, Beverage & Dairy] |
| Working Pressure | 8 to 30 bar (30 kg) |
| Operating Temperature | -20°C to +150°C |
| Gasket & Seal Materials | PTFE, TFM 1600, UHMWPE (High chemical and thermal resistance) |
| Connection Types | Sanitary Tri-Clamp, Orbital Welding, Threaded (DIN, SMS, ISO, IDF, BPE, RJT) |
| Actuator Mounting | Integrated ISO 5211 mounting pad for easy automation |
| Operating Torque | 1 N·m to 100 N·m |
| Key Product Features & Operations | |
|---|---|
| Multi-Port Flow Config | Available in flexible multi-port structures including two-way, three-way, and four-way configurations, allowing for efficient line diversion, mixing, and bypassing without complex manifold piping. |
| Unrestricted Full-Port Flow | The internal ball design aligns perfectly with the pipe diameter when fully open, minimizing pressure drop and eliminating product shearing-perfect for viscous food products or fluids containing solids. |
| Highly Adaptable Automation | Features an integrated ISO 5211 mounting pad for seamless transition between a manual handle and automated pneumatic or electric actuators. |
| Advanced Cavity Filled | Utilizes premium PTFE / TFM 1600 / UHMWPE seating materials engineered to withstand aggressive Clean-In-Place (CIP) chemicals and high-temperature Steam-In-Place (SIP) sterilization cycles. |
Sanitary Fluid Handling & High-Purity Food Process Systems
WSG sanitary ball valves are engineered for high-performance fluid control in hygienic processing environments. Our versatile series of ball valves offers robust, reliable sealing and an unrestricted flow path, making it the ideal choice for food processing, beverage, dairy products, pharmacy, wine making, cosmetics, chemical, and semiconductor industries.
Global Compliance & Quality Standards
Manufactured to meet the most stringent international standards for sanitary processing and pressure containment:
• 3-A Sanitary Certification (3-A-68-00)
• PED (Pressure Equipment Directive) Compliant
• 97/23/EC Certified
| Technical Specifications & Engineering Data | |
|---|---|
| Size Range | 1/2" to 4" (DN15 - DN100) |
| Body Material | High-precision 316L Stainless Steel (Meets global material standards for premium material integrity) |
| Surface Roughness | SF1 Standard: Ra ≤ 20μin (0.5μm Max) [Standard for Food, Beverage & Dairy] |
| Working Pressure | 8 to 30 bar (30 kg) |
| Operating Temperature | -20°C to +150°C |
| Gasket & Seal Materials | PTFE, TFM 1600, UHMWPE (High chemical and thermal resistance) |
| Connection Types | Sanitary Tri-Clamp, Orbital Welding, Threaded (DIN, SMS, ISO, IDF, BPE, RJT) |
| Actuator Mounting | Integrated ISO 5211 mounting pad for easy automation |
| Operating Torque | 1 N·m to 100 N·m |
| Key Product Features & Operations | |
|---|---|
| Multi-Port Flow Configuration | Available in flexible multi-port structures including two-way, three-way, and four-way configurations, allowing for efficient line diversion, mixing, and bypassing without complex manifold piping. |
| Unrestricted Full-Port Flow | The internal ball design aligns perfectly with the pipe diameter when fully open, minimizing pressure drop and eliminating product shearing-perfect for viscous food products or fluids containing solids. |
| Highly Adaptable Automation | Features an integrated ISO 5211 mounting pad for seamless transition between a manual handle and automated pneumatic or electric actuators. |
| Advanced Cavity Filled Options | Utilizes premium PTFE / TFM 1600 / UHMWPE seating materials engineered to withstand aggressive Clean-In-Place (CIP) chemicals and high-temperature Steam-In-Place (SIP) sterilization cycles. |
